Product Details:
Payment & Shipping Terms:
|
| Color: | Black | P/N: | DT04-2P |
|---|---|---|---|
| Type: | Deutsch Connector | Gender: | Male |
| Feature: | Waterproof | Martial: | PBT/PA66 |
| Way: | 2 Hole | HS Code: | 8536909000 |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | deutsch waterproof connectors,deutsch dt series connectors |
||
2 Hole Deutsch Te Connectivity Rectangular Housing Connector DT04-2P
Description
Deutsch Te Connectivity DT Series Rectangular Housing Connector
Height:43.38 mm
Length:0.675 inch
Pitch:5.5 mm
Width:0.691 inch
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These connectors come with the terminals and seals
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
2 Hole Deutsch Te Connectivity Rectangular Housing Connector DT04-2P |
| P/N | DT04-2P |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin Deutsch Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

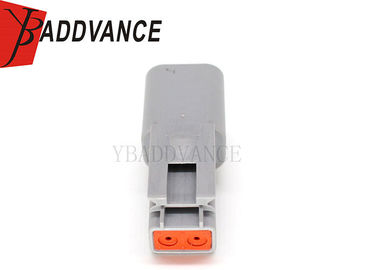

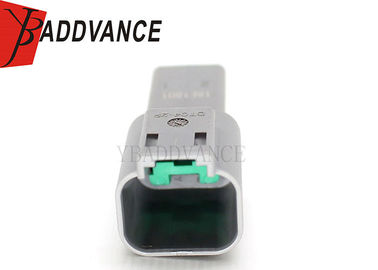

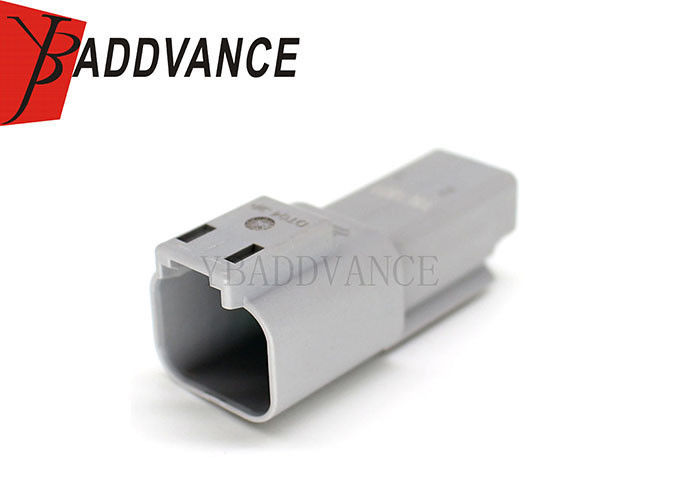

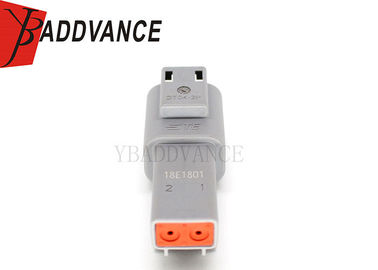

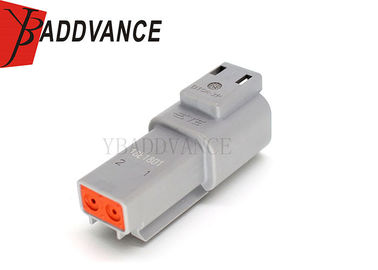

Product Picture Details
