Product Details:
Payment & Shipping Terms:
|
| P/N: | 6189-7262 | Way: | 14 Way |
|---|---|---|---|
| Color: | Grey | Martial: | PBT/PA66 |
| Type: | Sumitomo Connector | Feature: | Waterproof |
| Application: | Automotive Car | PLACE OF ORIGIN: | Shaanxi,China |
| HS Code: | 8536909000 | WARRANTY: | 1 Year |
| High Light: | sumitomo mt connector,sumitomo electric connectors |
||
14 Hole Electrical Waterproof Sumitomo 1.5 mm Connector 6189-7262
Description
14 Hole Electrical Waterproof Sumitomo 1.5 mm Connector
These connectors come with the terminals and seals
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.
Height :33.7 mm
Length :28.4 mm
width:37.3 mm
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
Material: Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze.
We can make the wire if you need it
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
14 Hole Electrical Waterproof Sumitomo 1.5 mm Connector 6189-7262 |
| P/N | 6189-7262 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
14 pin Sumitomo connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 14 Way |
| Color | Grey |
| Warranty | 1 year |
| Application | Automotive Car |

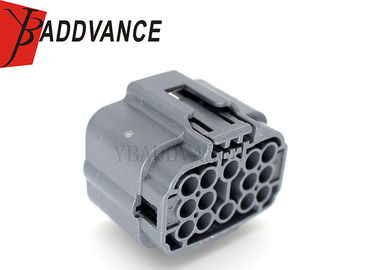

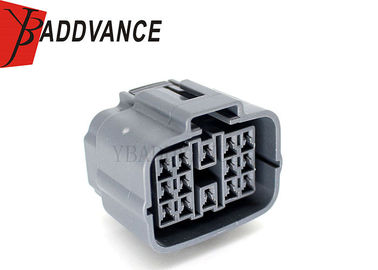

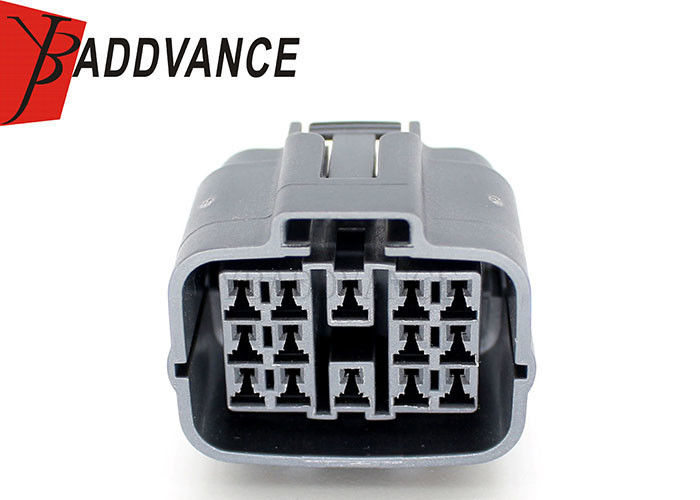

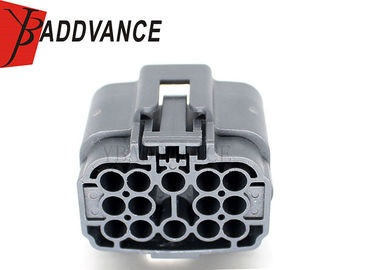

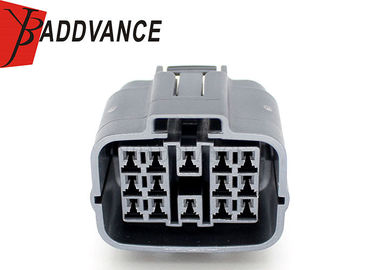

Product Picture Details
