Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| P/N: | 15449028 | Color: | Black |
|---|---|---|---|
| Way: | 2 Way | Martial: | PBT/PA66 |
| Application: | Sealed Connector | Feature: | Waterproof |
| HS Code: | 8536909000 | Type: | Sealed Connector |
| PLACE OF ORIGIN: | Shaanxi,China | WARRANTY: | 1 Year |
| High Light: | coil pack connector,metri pack connector |
||

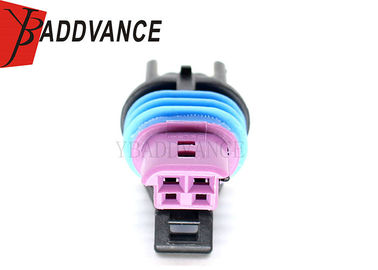

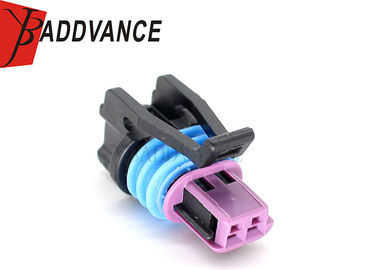

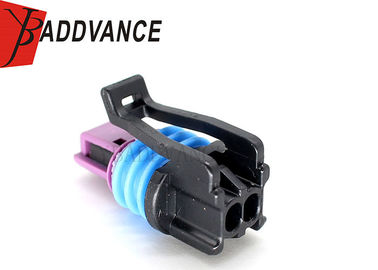

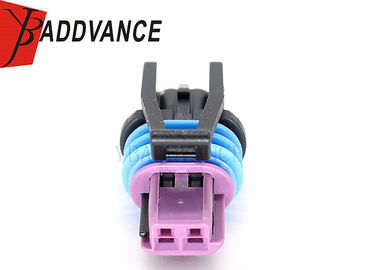

2 Pole GM LS Engine ECT GT-150 Series 3.5mm Sensor Connector 15449028
Description
2 Way Delphi GT150 Series Sealed Female Connectors
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
The GT150 series of sealed female automotive connectors have a 1.5mm blade width.
These automotive connectors have silver interface platings
The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -125°C.
These connectors come with the terminals and seals
Fits wires from 20 - 24 AWG
These are replacement high quality parts.
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
2 Pole GM LS Engine ECT GT-150 Series 3.5mm Sensor Connector 15449028 |
| P/N | 15449028 |
|
Wire Size |
20-24AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin D elphi connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
