Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| P/N: | 13847082 BP 50025 F 28231 | Color: | Black |
|---|---|---|---|
| Type: | Delphi 3 Pin Connector | Martial: | PBT/PA66 |
| Way: | 3 Way | Feature: | Waterproof |
| HS Code: | 8536909000 | Application: | Automotive Car |
| High Light: | coil pack connector,metri pack connector |
||

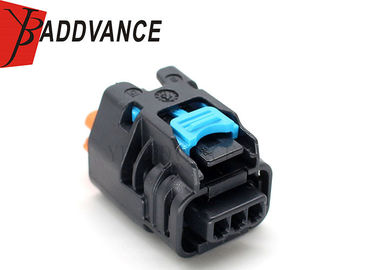

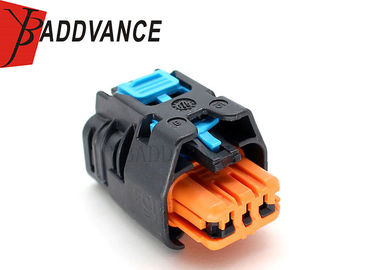

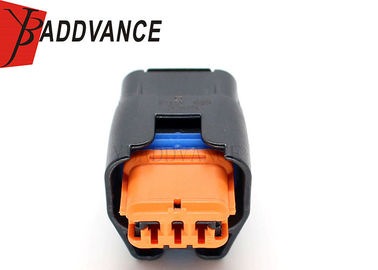

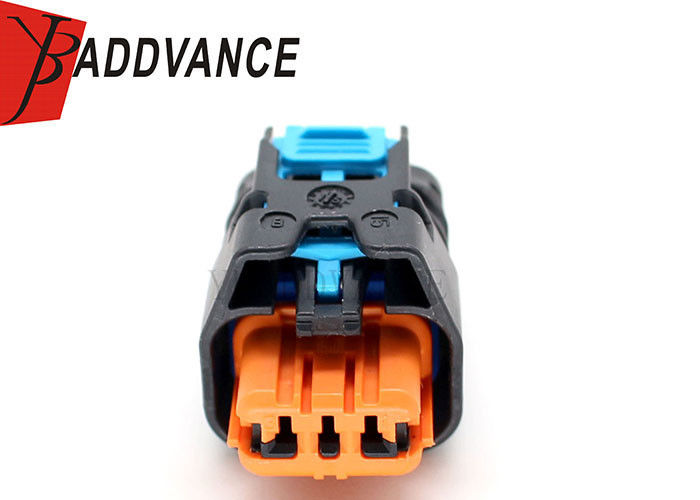

3 Pin GEN3 Female Delphi Female connector 13847082 BP 50025 F 28231
Description
2.5 Series 3 Pin GEN3 Female D elphi Connection System France ZI Des longs réages
Following are YBADDVANCE Connection Type :
Wire to Wire
Wire to Board
Wire to Device
These connectors come with the terminals and seals
We also can make the wire if you need it .
Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)
These are replacement high quality parts.
High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance
Specification
|
Item name |
3 Pin GEN3 Female D elphi Female connector 13847082 BP 50025 F 28231 |
| P/N | 13847082 BP 50025 F 28231 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
3 pin D elphi connectors |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 3 hole |
| Color | Black |
| Warranty | 1 year |
| Application | Automotive Motorcycles |
