Product Details:
Payment & Shipping Terms:
|
| Application: | For Toyota Accelerator Pedal Position Sensor | Sumitomo P/N: | 6189-0323 |
|---|---|---|---|
| Toyota Part Number: | 90980-11663 90980-11194 | Feature: | Waterproof Connector |
| Type: | Sumitomo Connector | HS Code: | 8536909000 |
| Way: | 6 Way | Male/Female: | Female |
| WARRANTY: | 1 Year | PLACE OF ORIGIN: | Shaanxi,China |
| High Light: | sumitomo mt connector,sumitomo electric connectors |
||
Sumitomo TS 090 Sealed 6 Pin 6 Way Connector For Accelerator Pedal Position Sensor 6189-0323 90980-11663 90980-11194
Description
YBADDVANCE supplier will replace sumitomo 6 way Accelerator Pedal Position Sensor connector and that come with crimp pins and seals together.
The following is product details:
1 x Connector housing
1 x Locking Clip
1 x Waterproof seals
6 x Crimp Terminals
6 x Wire seals
Specification
|
Item name |
6 Pin female connector |
| P/N | 6189-0323 90980-11663 90980-11194 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40~120 |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
6 Way 6 Pin toyota connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| Total number of hole | 6 Pin |
| Color | Gray |
| Warranty | 1 year |
| Application | Automoive Motorcycles |

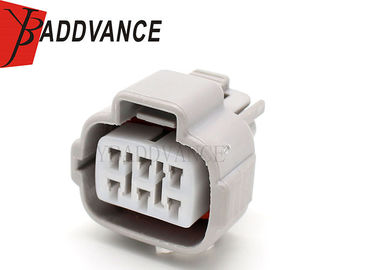

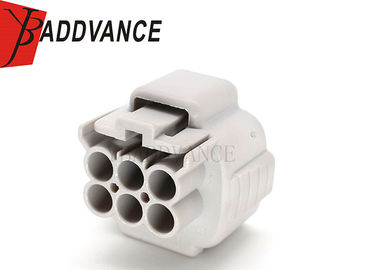

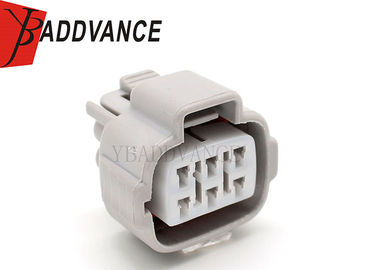

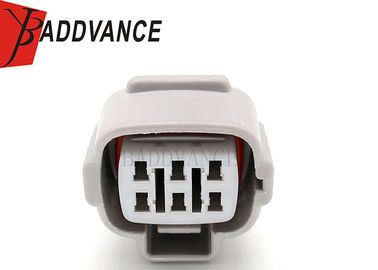

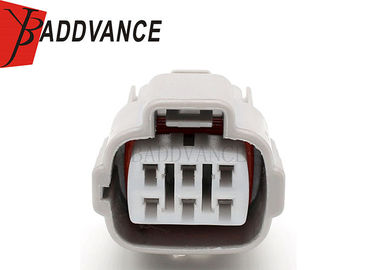

Product Picture Details
