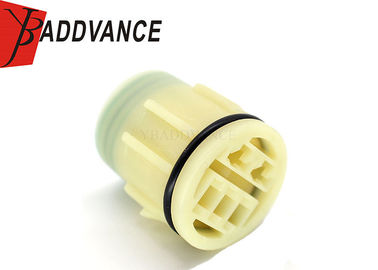

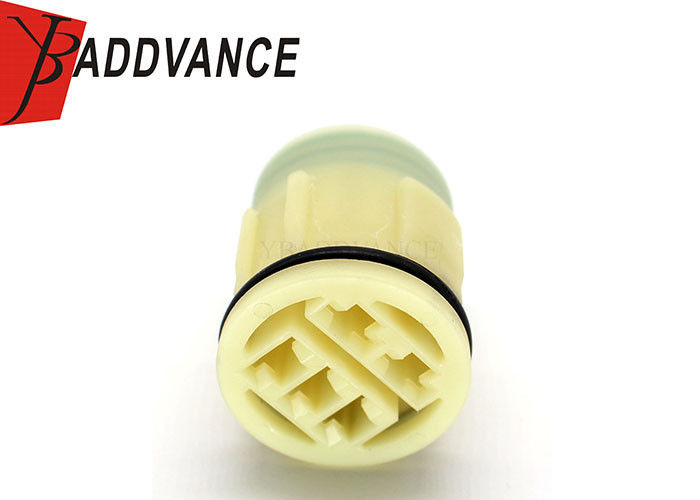

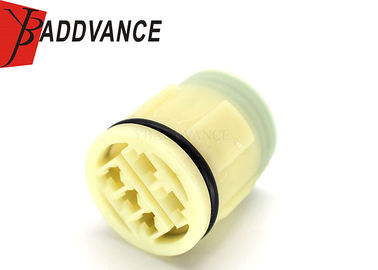

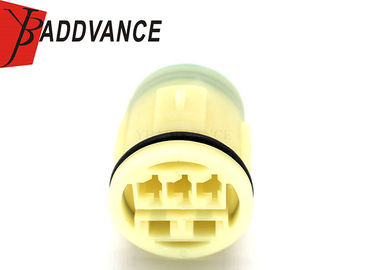

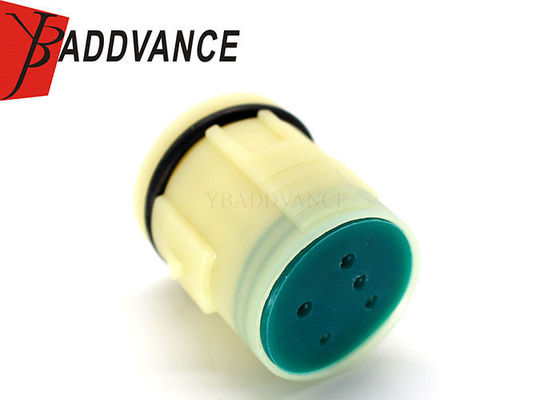

Sumitomo 5 Pin Round Connector 250 Sealed With Waterproof Seal

Large Image : Sumitomo 5 Pin Round Connector 250 Sealed With Waterproof Seal

Product Details:

Place of Origin:	China(mainland)
Brand Name:	YBADDVANCE
Certification:	ISO9001
Model Number:	DS250-5F

Payment & Shipping Terms:

Minimum Order Quantity:	100 UNITS
Price:	USD 0.5-0.7 Per set with crimp terminals
Packaging Details:	Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Delivery Time:	About 5-8 work days
Payment Terms:	T/T, Western Union,paypal,credit card
Supply Ability:	50,000 units/month

Contact Now

Detailed Product Description

Part Number:	DS250-5F	Series:	Sumitomo 250 Series Connectors
Material:	Nylon	Sealed/Unsealed:	Sealed
Color:	Yellow	Gender:	Female
Way:	5 Pin	Included:	With Oring And Brass Terminal
Leak Current:	10μA Max.	Insulation Resistance:	100MΩ Min.
High Light:	sumitomo electric connectors , sealed sensor connector

5 Pin Sealed Sumitomo 250 Female Round Connector With Waterproof Seal

Product Description

5 Pin 250 Sealed Female Connector
This was used on some models for a stator Connector.
These come with seal and housing lance terminals for 14-18 gauge wire
It's Brass terminals

Specification

Keywords	Round Connector
Part Number	DS250-5F
Sealed/Unsealed	Sealed Connector
Male/Female	female
Material	Nylon
Way	5 way
Contact resistance	Initial 3mΩ Max. after durability tests 10mΩ Max
Leak current	10μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 98kPa Min. after durability tests 98kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Housing Color	White
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
