Product Details:
Payment & Shipping Terms:
|
| Sumitomo No.: | 6180-6181 | Keywords: | MT 090 Connector |
|---|---|---|---|
| Material: | PBT | Color: | Black |
| Sealed/Unsealed: | Sealed | Male/Female: | Female |
| Number Of Position: | 6 Pin | Series: | 2.3mm(090) |
| Leak Current: | 100μA Max. | Insulation Resistance: | 100MΩ Min. |
| High Light: | sumitomo 4 pin connector,sumitomo terminal connector |
||

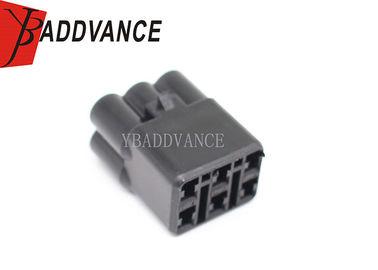

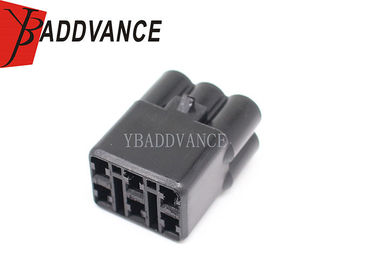

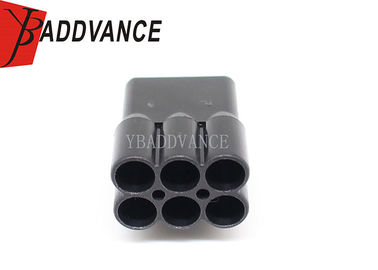

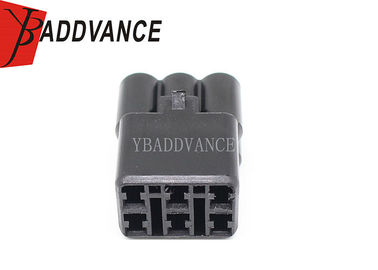

Sumitomo 6 Pin Female MT 090 connector With Inner Seal and Wire seals 6180-6181
Product Description
6 Way female sumitomo automotive Connector comes complete with terminals and wire seals.
Nylon Connector with inner seal, and wire seals.
This connector is nearly identical to the HM 090-6
but is actually in the MT series.
It has no clip on mounting capability.
It is slightly shorter in length, and uses the same female connector as the
Use Sealed Waterproof HM-090-6 Female as it mating connector.
Terminals part number
2.3mm 1500-0110
2.3mm 8240-4828
Wire Seals part number
2.3mm 7160-8234
Specification
| Keywords | Sumitomo MT 090 connector |
| Original Number | 6180-6181 |
| Type | Waterproof sealed connector |
| Male/Female | Female |
| Material | PBT |
| Series | MT 090 Series 2.3mm(090) |
| Contact resistance |
Initial |
| Leak current | 100μA Max. |
| Insulation resistance | 100MΩ Min. |
| seal |
Initial |
| Quality Control | All goods will be 100% inspected before shipment |
| Color | Black |
| Operating Temperature range | -40℃~120℃ |
| Sample | We can provide you samples before place an order |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
