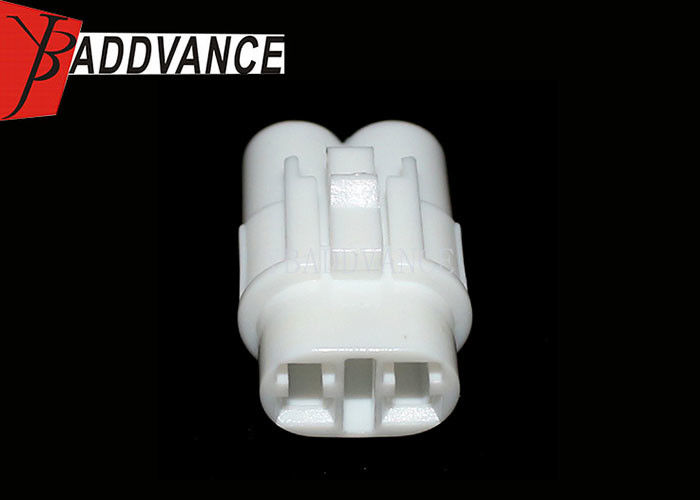

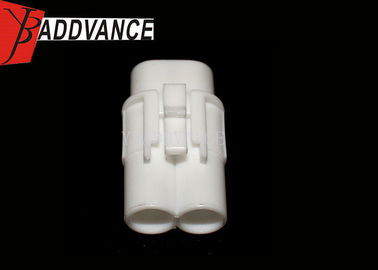

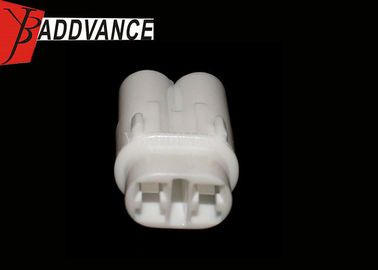

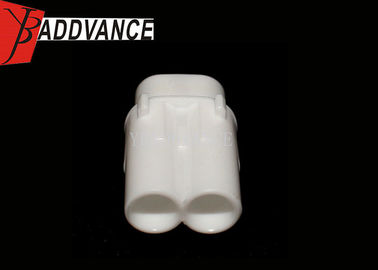

White 2 Pin Motorcycle Connector , Sumitomo MT Sealed Series 6180-2181

White 2 Pin Motorcycle Connector , Sumitomo MT Sealed Series 6180-2181
White 2 Pin Motorcycle Connector , Sumitomo MT Sealed Series 6180-2181 White 2 Pin Motorcycle Connector , Sumitomo MT Sealed Series 6180-2181 White 2 Pin Motorcycle Connector , Sumitomo MT Sealed Series 6180-2181 White 2 Pin Motorcycle Connector , Sumitomo MT Sealed Series 6180-2181

Large Image :  White 2 Pin Motorcycle Connector , Sumitomo MT Sealed Series 6180-2181

Product Details:

Place of Origin: China(mainland)
Brand Name: YBADDVANCE
Certification: ISO9001
Model Number: 6180-2181

Payment & Shipping Terms:

Minimum Order Quantity: 100 UNITS
Price: USD 0.5-0.7 Per set with crimp terminals
Packaging Details: Inside packing:100 units/lot put into bags. Outside packing:carton 5 layers.
Delivery Time: About 5-8 work days
Payment Terms: T/T, Western Union,paypal,credit card
Supply Ability: 50,000 units/month
Detailed Product Description
Keywords: Sumitomo MT 090 Connector Sumitomo Number: 6180-2181
Material: PBT Color: White
Sealed/Unsealed: Sealed Male/Female: Female
Way: 2 Series: 2.3mm(090)
Leak Current: 100μA Max. Insulation Resistance: 100MΩ Min.
High Light:

sumitomo 2 pin connector

,

sumitomo terminal connector

Motorcycle 2 Pin Female Connector Sumitomo MT Sealed Series 6180-2181





Product Description



Waterproof Connector Housing with Inner Seal, and Wire Seals
Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)

Terminal:2.3mm OE number 1500-0110 and 8240-4828

Seals:2.3mm OE number 7160-8234



Sumitomo - MT Sealed 2 pin Connector - for .090 - 2.3mm Terminal.
These Connector s are used highly on TPS, CAM, CRANK, Sensors Fuel Injectors for GSXR and YZF, CBR Models.
All connectors Come complete with male, female terminals and Wire seals.
For wire sizes .6 - 1.3mm (16-22 AWG)







Specification



Keywords Sumitomo MT090 Connector
Original Number 6180-2181
Type Waterproof connector
Male/Female female
Material PBT
Series 2.3mm(090)
Contact resistance

Initial
3mΩ Max.
after durability tests
10mΩ Max.

Leak current 100μA Max.
Insulation resistance 100MΩ Min.
seal

Initial
49.0kPa Min.
after durability tests
29.4kPa Min.

Quality Control  All goods will be 100% inspected before shipment
Color Violet
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1kgs/100 pieces
Shipping express  DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL





More details about pictures



White 2 Pin Motorcycle Connector , Sumitomo MT Sealed Series 6180-2181 0
